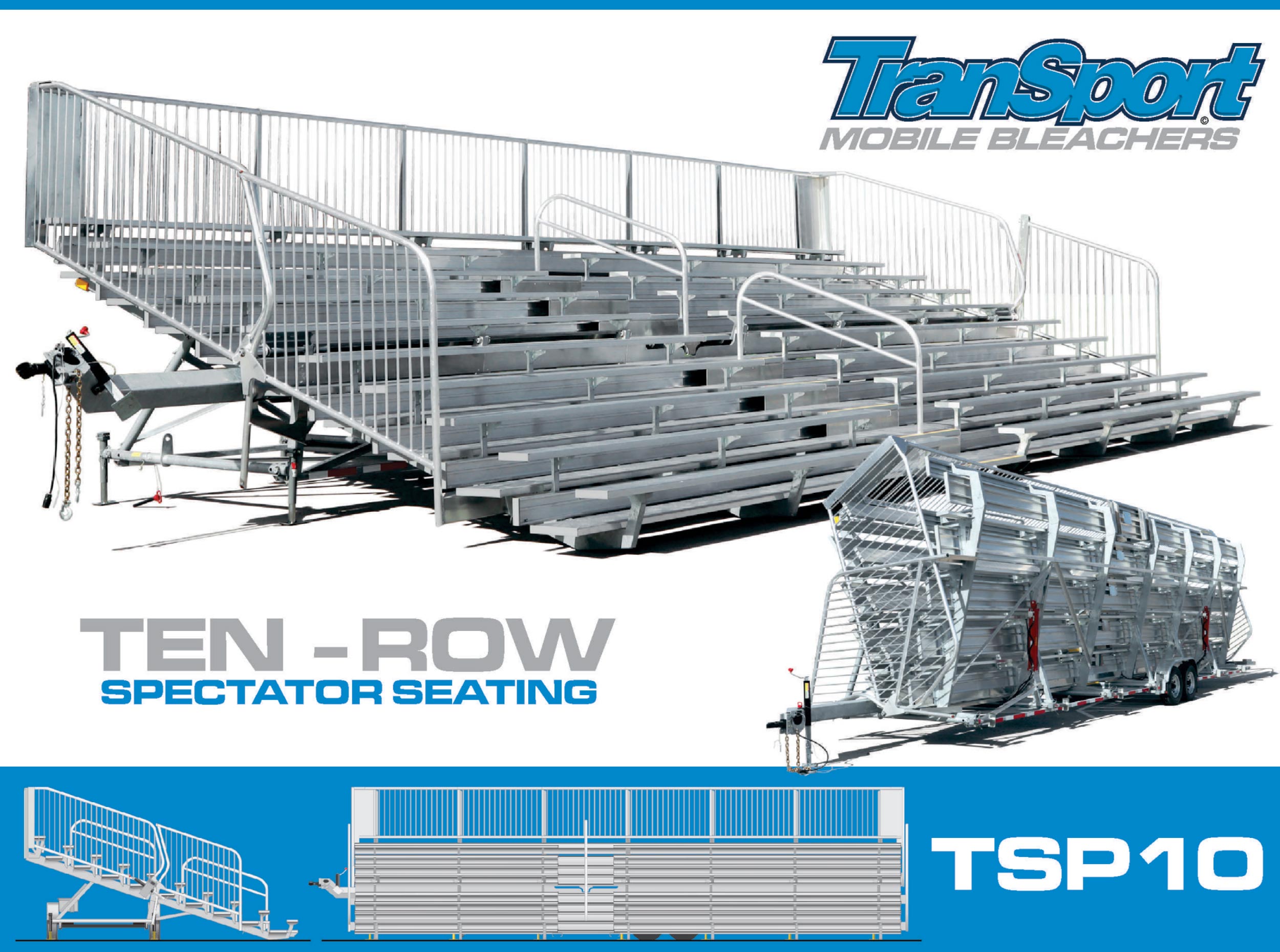

TSP10 model mobile bleachers provide you with outdoor mobile ten-row spectator seating that can be quickly and easily relocated throughout your community on public roads. TSP10 bleachers offer a compact design with reduced weight for easy towing and a high degree of maneuverability allowing positioning in confined locations. Reduced weight permits the use of sm aller tow vehicles while reducing site impact and permitting operation on softer ground surfaces.
TSP10 mobile bleachers feature push-button opening and closing for fast, effortless, one-person set up.
TSP10 mobile bleachers are built from weather resistant materials to withstand outdoor use.
Overview
• 10 Rows high
• 24” Seat row spacing for increased comfort
• Aisle with ADA handrails – standard
• Uniform slope for increased safety and codes
• Concealed hinge points
• One person push-button setup
• Self-Stowing over-center design
• Reduced towing weight, reduced site impact
• Outdoor weather-resistant construction
• IBC2018 code compliance standard
• Delivered fully assembled, ready for use
Seat & Footboards
• Full length without gaps
• Extruded aluminum seat and foot planks
• Extra-width one-piece footboards
• IBC riser enclosures – standard
Guardrails
• Aluminum construction
• Rounded guardrails for comfort
• Attached to bleacher structure for automatic set up and positioning
Leveling/Support
• Multiple frame mounted support jacks permit bleacher operation on soft surfaces.
• Jacks pivot 90 degrees to prevent damage during towing, reduce cranking, and increase adjustment travel for unlevel or uneven terrain.
• Built-in frame-mounted anchoring lugs
Actuation System
• Self-contained hydraulic actuation system powered by 12VDC battery system with built-in charger
• Mechanical components mounted in enclosed compartment
• Hydraulic actuation cylinder is retracted during transport and storage for maximum protection from damage and corrosion.
• Actuator does not penetrate main frame
Transport
• Hitch – choice of pintle, 2 5/16” ball coupler, or 2” (50mm) ball coupler
• Retractable hitch
• Electric brakes
• Highway rated tires
• Rugged rubber torsion suspension accommodates curbs and off-road towing
• Fenders
• LED DOT marker and signal lights
Weather Resistance
• Steel components plated or hot-dip galvanized after fabrication
• Anodized aluminum seatplanks
Optional Features
• ADA provisions
• Enclosed storage compartment
• Solar battery charger
• Spare tire
